• SMEMA Hermes
    Adaptor

  • Upgrade your legacy
    SMEMA equipment

  • to IPC-HERMES-9852
    The Hermes Standard


A compact and low cost solution to extend the life of your
SMEMA based SMT electronic assembly equipment.


Your building blocks towards a Smart Factory


What is
IPC-HERMES-9852

The Hermes Standard is a successor of SMEMA (IPC-SMEMA-9851) replacing simple opening and closing of circuits and dedicated wiring to define Ready signals, with XML messages sent via ethernet.

The use of XML means not only control messages can be sent between manufacturing equipment but also printed circuit board (PCB) data for automatic equipment setup and product traceability.


How it works

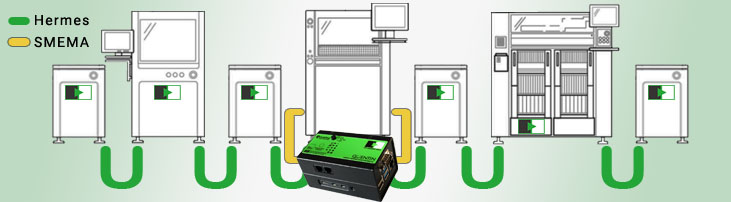

Using the MultiPlug.Ext.Hermes MultiPlug Extension, the SMEMA Hermes Adaptor connects to both the Upline and Downline SMEMA connectors of the targeted non-Hermes compliant assembly equipment. This equipment believes it is communicating with Upline and Downline equipment in the normal SMEMA manner.

The Adaptor then takes the Upline Hermes control messages and converts them into SMEMA signals. It does the same with the Downline SMEMA connector of the non-Hermes compliant assembly equipment but in reverse by converting the SMEMA ‘Good Board’ and ‘Bad Board’ signals into Hermes messages for Downline equipment.

While this sequence occurs the Adaptor stores the Hermes PCB data so it’s not lost for onward travel down the production line. The PCB data is then re-paired with exiting PCBs on a First In, First Out (FIFO) basis and Good Board, Bad Board data updated.

The non-Hermes compliant equipment will not have access to this PCB data however the Adaptor has a RS232 serial connection so equipment such as conveyors can extract PCB widths for automatic setup.


Use Case

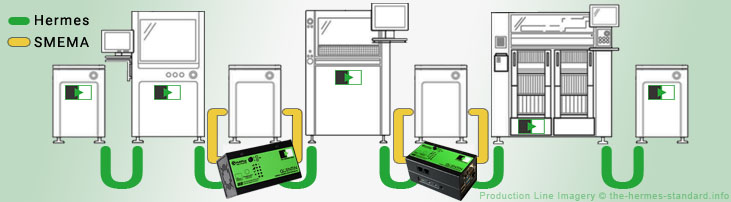

The Adaptor has been initially created to fill the void of equipment that has historically had little intelligence therefore it becomes challenging to apply the Hermes Standard to it. This is commonly ‘dumb’ equipment such as PCB Conveyors that only currently work with SMEMA.

The second group is equipment that has fallen out of a service plan either by its age or due to second hand use, and so suppliers are unwilling to upgrade its control software. The final group are equipment suppliers that want to distance themselves from supporting a software standard that is currently a moving target.

We don't recommend using the Adaptor as your first step towards a full Hermes production line, you should instead contact the suppliers of your larger intelligent equipment and understand their timelines of upgrading your equipment’s software.

The Adaptor however is a great tool to understand the Hermes Standard and how it may benefit your production and how it could be used as a smart factory innovation drive.

Navigate to the lower half of this page to discover other uses for the Adaptor.


QUENTIN Mk3 SL

AKA the SMEMA Hermes Adaptor

  • Compact Design
  • Low Cost
  • Speedy Setup
  • Headless Device
  • Software Extendable

Specification

  • Single Lane SMT Assembly Production (Dual Lane on request)
  • Length 109 x Width 62 x Height 55 - Weight 227 grams
  • 2GB RAM, 32GB Storage, Linux Single-Board Computer
  • 5 Volt Supply via USB-C - optional industrial 24v stepdown
  • RJ12 Plug to SMEMA Plug or Socket Dongles (optional accessory)
  • RS232 Serial Port for Conveyor Integration
  • SMEMA and Hermes status indicators
  • Real Time Clock for accurate data logging
  • WiFi Access Point for remote setup and monitoring
  • Audible indicator and Active Cooling
  • Din Rail, Magnetic or Wall Mount

Connecting Manufacturing with the Digital Economy

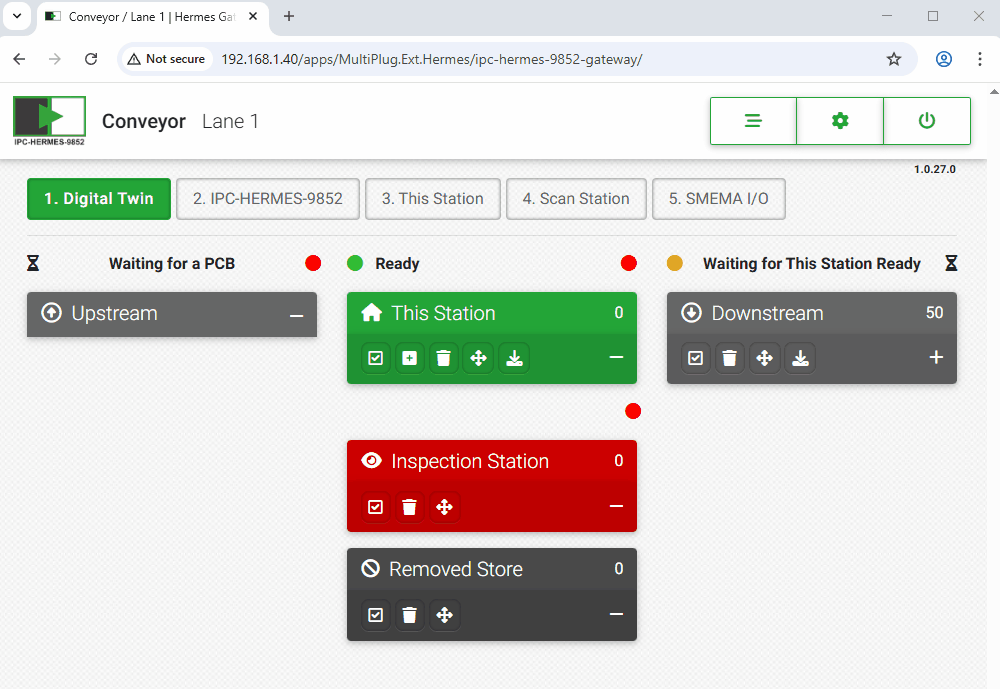

Web Browser Based User Interface

The Digital Economy has grown over the last 30 years and the people that work within it use the Web Browser has their native user interface. To employ their skills into the Manufacturing industry we must use the same technologies to talk the same language. While the Adaptor is a Headless device in normal operation, Setup and Monitoring is conducted by a Browser based user interface.




Industry 4.0
Software is king

As a device with a defined purpose, the Adaptor will fulfill that purpose, but we now work within the Industry 4.0 era where shop floor technicals should be able to customise their solutions based on their changing needs. If that means the injection or extraction of data at given points, then a true Industrial Internet of Things (IIoT) based product should give the option for change.

The Adaptor runs the MultiPlug Edge Computing Platform that allows additional functionality to be loaded by Software Extensions. The Hermes Standard is one such proprietary Extension but other Open Source Extensions can be loaded. New Extensions can be created using the .Net programming language.

The MultiPlug uses the Publish–Subscribe design pattern where events are mapped to subscriptions using a visual web browser editor making it fully flexible for changing needs.

  • Powered by the MultiPlug Edge Computing Platform
  • Add functionality via MultiPlug Extensions
  • Native Browser based User Interface
  • REST APIs
Info: MultiPlug Edge Computing Platform



Used by



Other Uses for the Adaptor


OEM Equipment Integration

During the development of the Adaptor we have been approached by equipment suppliers who either want to support existing legacy equipment in the field on behalf of their customers or were interested in keeping the Hermes Standard upgrade solution modular but seen to be part of their existing offering.

We can supply the Adaptor in an unenclosed raw state which can be mounted as you see fit and wired using the RJ12 connectors. It is also possible to directly interface with the Single-Board Computer which means you wouldn’t use our SMEMA interface hardware however you, and your customers would benefit from the Hermes MultiPlug software and ongoing support. Dual Lane versions are available on request and White labeling is also available.

The MultiPlug.Ext.Hermes software extension that runs on the Adaptor can be used without the need of the Adaptor hardware creating a Gateway between the Hermes Standard (Network Sockets) and a REST API or bespoke interface to a OEM solution. This allows machine builders to upgrade their SMEMA offering by a simple software addition.


Scan Station

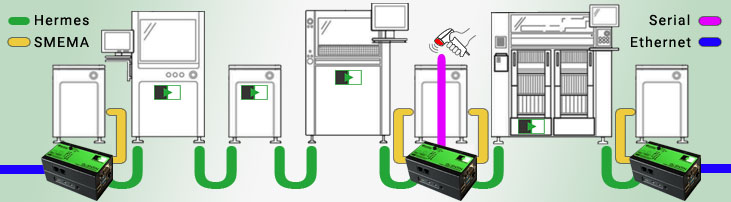

The Adaptor features USB ports and a RS232 serial port which a barcode scanner can be connected to. This means it will be possible at the start of a Hermes enabled production line to either use a scanned barcode as that PCB’s identification for downline Hermes use, or retrieve the PCB data using this scanned barcode from a Manufacturing Execution System (MES), Database or IPC-CPX connection using another MultiPlug Extension dedicated to that task.


SMEMA Interlocking

It may be useful to pause a production line due to an unrelated Hermes situation and rather than stop the equipment locally, a remote stop triggered by a remote user action or third party system. This is possible using the REST API which can control all SMEMA I/O as well as using the Web Browser based user interface.

Also while the Hermes Standard intended to try to remove the need for Barcode Readers, it is possible to connect a barcode reader to the Adaptor to use it to double check that the board on the Conveyor is the same as the PCB ID of Hermes. SMEMA will interlock if the IDs are mismatched.


Connected Factory Exchange (IPC-CFX)

By purchasing the Adaptor you are future proofing yourself into an ecosystem that will evolve over time. The MultiPlug Edge Computing platform is currently proprietary software however Extensions can be developed open or closed source which allows functionality to be increased over time.

The IPC-CFX will be an obvious next step MultiPlug Extension and similar functionally that is currently available for Hermes will be available for the CFX. Both standards could also be used in tandem; Hermes for linear production line data movement and CFX for vertical data movement. The speed of the creation of a CFX Extension will be decided by customer demand.


General I/O

The SMEMA interface can easily be repurposed for general Input and Output. A single lane SMEMA interface consists of 3 switch circuits (1A 30 VDC max) and 3 circuit detectors (open or closed). So could be easily used to trigger visible indicators such as beacons (Outputs) and connected to switched circuits (Inputs).

The state of these I/O can then be mapped within MultiPlug to trigger off other events such as a HTTP Post request to a third party system, Or use the MultiPlug REST API to toggle the state of the output I/O.


Collaboration



The project of creating the Adaptor has only been made possible by the collaboration between investors, suppliers and innovators.
